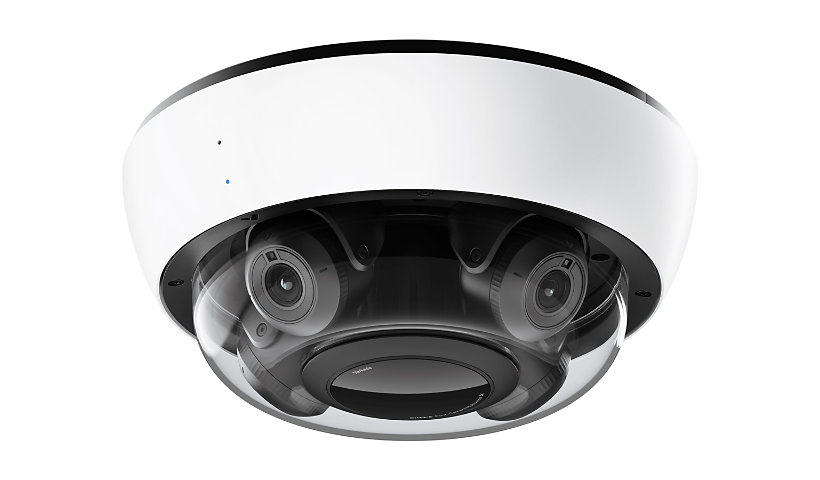

Brand: Verkada | Product Line: Verkada | Model: CH63-E | Manufacturer: Verkada Hardware | Flash Memory Installed: 2 TB | Memory Cards Supported: microSD Card, microSDXC Card | Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T | Protocols: RTSP | Connectivity Technology: Wired | Ports: LAN/power – RJ-45 | Image Sensor Size: 4 x 1/2.8″ | Image Sensor Type: Progressive Scan CMOS | Tilt: 25 to 90 | Touchscreen: No | Audio Support Features: Built-in microphone, One-way audio capability | Camera Mechanical Design: Pan / tilt / zoom | Digital Video Capture Resolution: 3856 x 2228 | Max Frame Rate: 24 frames per second | Max Video Resolution: 3856 x 2228 | Motion Detection: Yes | Panning Range (degree): -180 to +180 | Shutter Speed (Max): 1/10000 second (time unit) | Shutter Speed (Min): 1/30 second (time unit) | Video Modes: 4K | Camera Type: Network surveillance camera | Night Vision: Yes | Low Voltage Power: DC 37 – 57 V / PoE++ | Angular Field of View (D, Max, Degree): 140 | Angular Field of View (D, Min, Degree): 47 | Angular Field of View (H, Max, Degree): 112 | Angular Field of View (H, Min, Degree): 42 | Angular Field of View (V, Max, Degree): 56 | Angular Field of View (V, Min, Degree): 23 | Focal Length Control: Motorized zoom | Form Factor: Dome | Infrared Distance: 98 ft | Infrared LEDs: Yes | Lens Aperture: F/1.9-3.24 | Max Focal Length: 8.12 millimetre | Max Operating Temperature: 122 degree Fahrenheit | Min Focal Length: 3.18 millimetre | Min Operating Temperature: -40 degree Fahrenheit | Minimum Illumination: 0 lux – IR, 0.009 lux – color – F1.9 | Operating Humidity: 0 – 90% | Protection: Weather resistant / impact resistant | Sensor Size (metric): 4 x 9.1 mm (1/2.8″) | Total Pixels: 4 x 4,000,000 pixels | Video Formats: H.264, H.265 | Video Input: Color | Bundled With: 30 days maximum SQ onboard retention | Features: -90¡ã / +90¡ã rotation, 2 x Ambarella CV72S66 CPU, Aluminum housing, Dual exposure, IR-cut filter, LED Indicator, People analytics, True Wide Dynamic Range (TWDR), Vehicle analytics, Wide Dynamic Range (WDR) | Packaged Quantity: 1 | Included Accessories: 2 desiccants, 4 wall anchors, 4 wall screws, Cable gland, Conduit adapter, T10 security torx screwdriver | Height: 4.5 inch | Weight: 9.76 lbs | Width: 10.3 inch | Depth: 10.3 inch | Color Category: Black, White | Compliant Standards: FCC, ICES, IEEE 802.3bt, IK10, IP66, IP67, NDAA | Service & Support Details: Limited warranty – 10 years | Limited Warranty: 10 Year
