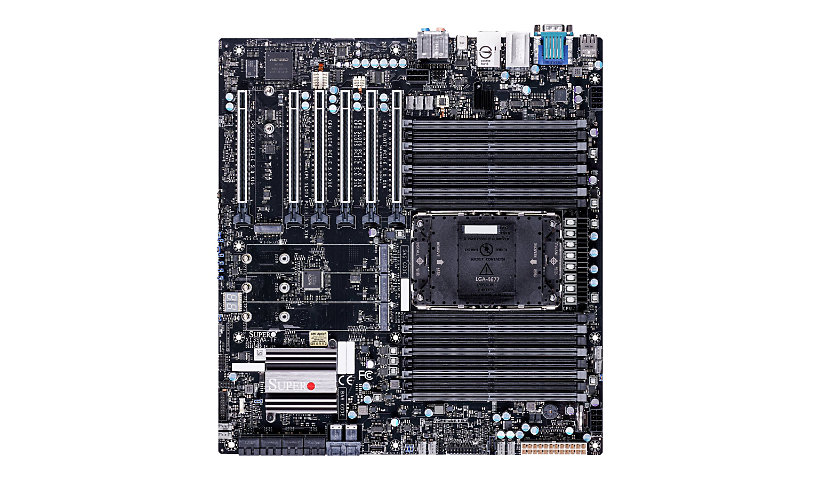

SUPERMICRO X13SWA-TF – motherboard – extended ATX – LGA4677 Socket-E – W790

Brand: Supermicro | Product Line: SUPERMICRO | Model: X13SWA-TF | Manufacturer: Super Micro Computer Inc | Compatible Processors: Xeon Scalable | Processor Socket: LGA4677 Socket-E | Processors Installed: 0 | Total Processor Supported: 1 | Max Memory Supported: 4 TB | Memory Slots: 16 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4400 MHz, 4800 MHz | Storage Interfaces: PCIe 3.0 -connectors: 2 x U.2, PCIe 5.0 -connectors: 4 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 8 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Controller Type: Marvell AQC113C / Intel I210-AT | Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 10 Gigabit Ethernet, Gigabit Ethernet | Expansion Slots: 1 x CPU, 16 x DIMM 288-pin (1.1 V), 4 x M.2 socket (2280/22110 M.2 Key M slot), 6 x PCIe 5.0 x16 | Interface Provided: 1 x IPMI, 1 x serial, 1 x USB-C 3.2 Gen-2 x 2, 2 x USB 2.0, 4 x USB 3.2 Gen 2 | Internal Interfaces: 1 x SPI – header, 1 x USB 3.2 Gen 1 – header, 1 x USB-C 3.2 Gen 2×2 – header, 2 x USB 2.0 – header | Storage: Serial ATA-600 (RAID), U.2 port | Storage Ports: 8 x SATA-600 (RAID), 4 x M.2, 2 x U.2 | USB & FireWire: USB 3.1 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2×2 | USB & FireWire Ports Configuration (Active): 1 x USB-C 3.2 Gen 2×2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 1 x USB-C 3.2 Gen 2×2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | Graphics Controller Model: ASPEED AST2600 | Type: Graphics adapter | Audio Output: 8-channel | Compliant Standards: High Definition Audio | Output Type: Sound card | Included Software: SuperDoctor 5 | Chipset Type: Intel W790 | Compatible Processors Comments: Supports 4th Generation Intel Xeon Scalable, supports CPUs with up to 56 cores, Maximum TDP 350 Watt | Form Factor (Motherboard): Extended ATX | Power Connectors: 24-pin main power connector, 3 x 8-pin ATX12V connectors | Supported RAM (Registered or Buffered): 3DS registered, Registered | Supported RAM Integrity Check: ECC | Audio Codec: Realtek ALC888S | BIOS Features: ACPI 6.0 support, PnP support, Power failure recovery (AC loss resume), SMBIOS 3.0 support | BIOS Type: AMI | Hardware Features: Chassis intrusion detection, Intel VROC support | Hardware Monitoring: Chassis temperature, CPU core temperature, Fan control, System voltage | Packaged Quantity: 1 | Product Type: Motherboard | Cables: 1 x GPU to CPU power cable, 6 x Serial ATA cable | Included Accessories: CPU carrier (MCC), CPU carrier (XCC), IO shield | Width: 12 inch | Depth: 13 inch | Compliant Standards: RoHS | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Service & Support Details: Limited warranty – labor – 3 years, Limited warranty – parts – 1 year | Limited Warranty: 3 Year | Package Type: Retail
