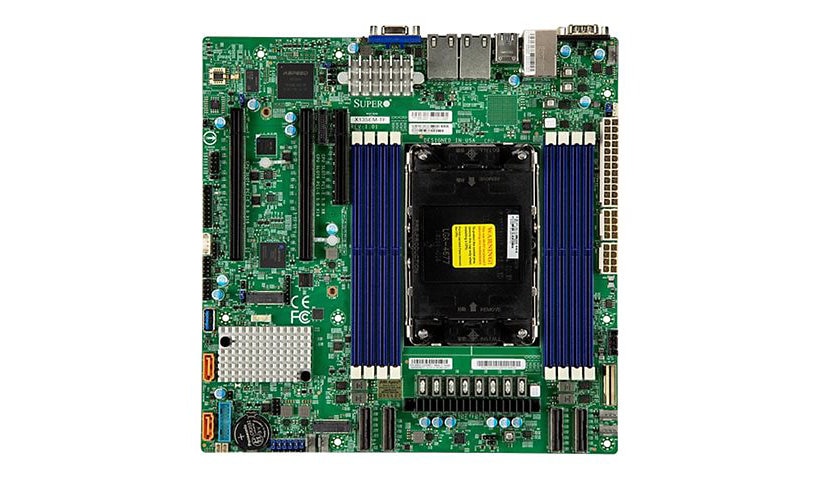

SUPERMICRO X13SEM-TF – motherboard – micro ATX – LGA4677 Socket-E – Intel C741

Brand: Supermicro | Product Line: SUPERMICRO | Model: X13SEM-TF | Manufacturer: Super Micro Computer Inc | Compatible Processors: Xeon Scalable | Processor Socket: LGA4677 Socket-E | Processors Installed: 0 | Total Processor Supported: 1 | Max Memory Supported: 2 TB | Memory Slots: 8 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4000 MHz, 4400 MHz, 4800 MHz | Storage Interfaces: PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 8 x NVMe, SATA-600 -connectors: 1 x SlimSAS – 8 devices, SATA-600 -connectors: 2 x SATA DOM | Controller Type: Intel X550 | Data Link Protocols: 10 Gigabit Ethernet | Network: 2 x 10 Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x PCIe 5.0 x8, 2 x M.2 socket (2280/22110 M.2 Key M slot), 2 x PCIe 5.0 x16, 8 x DIMM 288-pin (1.1 V) | Interface Provided: 1 x IPMI, 1 x serial, 1 x VGA, 2 x LAN (10Gigabit Ethernet), 2 x USB 2.0, 2 x USB 3.2 Gen 1 | Internal Interfaces: 1 x SPI – header, 1 x USB 3.2 Gen 1 – Type A, 2 x USB 3.2 Gen 1 – header, 4 x USB 2.0 – header | Storage: M.2 socket, NVMe port, Serial ATA-600 | Storage Ports: 10 x SATA-600, 8 x NVMe port, 2 x M.2 | USB & FireWire: USB 3.2 Gen 1 | USB & FireWire Ports Configuration (Active): 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 3 x USB 3.2 Gen 1 + 4 x USB 2.0 | Graphics Controller Model: ASPEED AST2600 | Type: Graphics adapter | Included Software: SuperDoctor 5 | Chipset Type: Intel C741 | Compatible Processors Comments: Supports 4th Generation Intel Xeon Scalable, supports CPUs with up to 60 cores, Maximum TDP 350 Watt | Form Factor (Motherboard): Micro ATX | Power Connectors: 2 x 8-pin ATX12V connectors, 24-pin main power connector | Supported RAM (Registered or Buffered): 3DS registered, Registered | Supported RAM Integrity Check: ECC | BIOS Features: ACPI 6.4 support, PnP support, Power failure recovery (AC loss resume), SMBIOS 3.5 support, UEFI 2.8 support, UEFI BIOS | BIOS Type: AMI | Hardware Features: Chassis intrusion detection, Node Manager support, Trusted Platform Module (TPM) | Hardware Monitoring: Chassis fan tachometer, Chassis temperature, CPU core temperature, CPU core voltage, CPU fan tachometer, System voltage | Packaged Quantity: 1 | Product Type: Motherboard | Sleep/Wake Up: Wake on LAN (WOL) | Cables: 2 x Serial ATA cable | Included Accessories: CPU carrier (MCC), CPU carrier (XCC), IO shield | Width: 9.6 inch | Depth: 9.6 inch | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Service & Support Details: Limited warranty – labor – 3 years, Limited warranty – parts – 1 year | Limited Warranty: 3 Year | Package Type: Bulk
