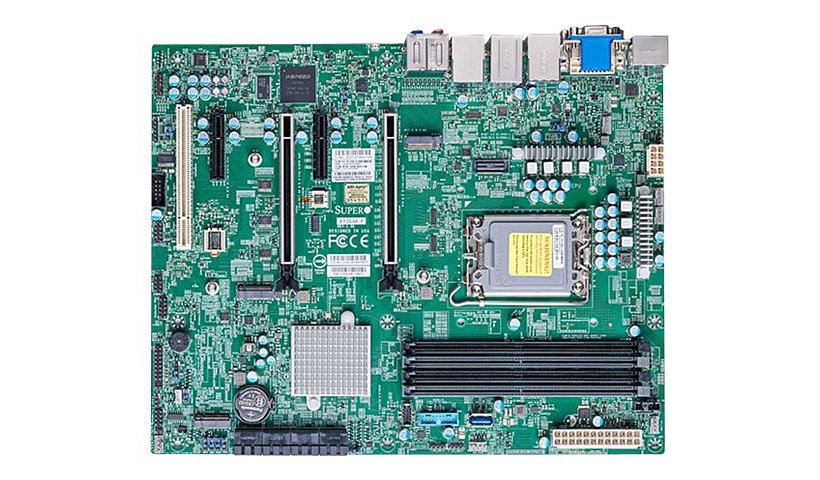

SUPERMICRO X13SAE-F – motherboard – ATX – LGA1700 Socket – W680

Brand: Supermicro | Product Line: SUPERMICRO | Model: X13SAE-F | Manufacturer: Super Micro Computer Inc | Compatible Processors: Core i3, Core i5, Core i7, Core i9 | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Max Memory Supported: 128 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4400 MHz | Storage Interfaces: PCIe 4.0 -connectors: 3 x M.2 – RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 8 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Controller Type: Intel I225-LM / Intel I219LM | Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 2.5 Gigabit Ethernet, Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x PCI (5 V), 2 x PCIe 3.0 x4, 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes), 4 x DIMM 288-pin (1.1 V) | Interface Provided: 1 x audio line-in – mini-jack, 1 x audio line-out – mini-jack, 1 x audio line-out (center/subwoofer) – mini-jack, 1 x audio line-out (rear) – mini-jack, 1 x DisplayPort, 1 x DVI-D, 1 x HDMI, 1 x LAN (2.5Gigabit Ethernet), 1 x LAN (Gigabit Ethernet), 1 x management, 1 x microphone – mini-jack, 1 x TOSLINK, 1 x USB-C Gen2x2, 1 x VGA, 4 x USB 3.2 Gen 2 | Internal Interfaces: 1 x serial – header, 1 x USB 3.2 Gen 1 – Type A, 1 x USB-C Gen 2×2 – header, 2 x USB 3.2 Gen 1 – header, 4 x USB 2.0 – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 8 x SATA-600 (RAID), 3 x M.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2×2 | USB & FireWire Ports Configuration (Active): 1 x USB-C Gen 2×2 + 4 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 | USB & FireWire Ports Configuration (Headers): 1 x USB-C Gen 2×2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | Graphics Controller Model: ASPEED AST2600 | Type: Graphics adapter | Audio Output: High Definition Audio | Compliant Standards: High Definition Audio | Output Type: Sound card | Chipset Type: Intel W680 | Compatible Processors Comments: Maximum TDP 125 Watt | Form Factor (Motherboard): ATX | Power Connectors: 24-pin main power connector, 8-pin ATX12V connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: ECC, Non-ECC | Audio Codec: Realtek ALC888S | BIOS Features: ACPI 6.0 support, Power failure recovery (AC loss resume), SMBIOS 3.0 support | BIOS Type: AMI | Hardware Features: WatchDog Timer | Hardware Monitoring: Chassis fan tachometer, Chassis temperature, CPU core temperature, CPU core voltage, CPU fan tachometer, System voltage | Packaged Quantity: 1 | Product Type: Motherboard | Sleep/Wake Up: Wake on LAN (WOL) | Cables: 2 x Serial ATA cable | Included Accessories: I/O back plate | Width: 12 inch | Depth: 9.6 inch | Compliant Standards: Plug and Play | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Service & Support Details: Limited warranty – labor – 3 years, Limited warranty – parts – 1 year | Limited Warranty: 3 Year | Compatibility Specs: Supermicro SC732 D4-903B, D4F-903B | Package Type: Bulk
