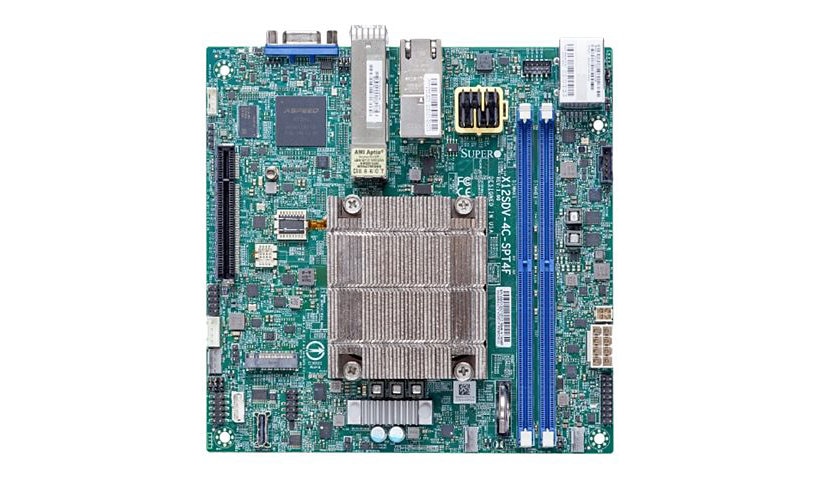

SUPERMICRO X12SDV-4C-SPT4F – motherboard – mini ITX – Intel Xeon D-1718T – FCBGA2227 Socket

Brand: Supermicro | Product Line: SUPERMICRO | Model: X12SDV-4C-SPT4F | Manufacturer: Super Micro Computer Inc | Clock Speed: 2.6 GHZ | Compatible Processors: Xeon | Cores: Quad-core | Processor Brand: Intel | Processor Number: D-1718T | Processor Socket: FCBGA2227 Socket | Processor Type: Xeon | Processors Installed: 1 | Cache Memory Installed: 10 megabyte | Max Memory Supported: 128 GB | Memory Details: 128 GB – registered – ECC | Memory Slots: 2 DIMM slots | Mainboard Supported RAM: DDR4 SDRAM | Supported Memory Speed: 2400 MHz, 2666 MHz, 2933 MHz | Storage Interfaces: SATA-600 / PCIe 3.0 -connectors: 1 x OCuLink, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | Controller Type: Intel X550 | Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 2 x 10 Gigabit Ethernet, 2 x 25 Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 4.0 x8, 2 x DIMM 288-pin (1.2 V) | Interface Provided: 1 x VGA, 2 x LAN (10Gigabit Ethernet), 2 x LAN (25Gigabit Ethernet) – SFP28, 2 x USB 3.0 | Internal Interfaces: 1 x serial – header, 1 x SPI – header, 2 x USB 2.0 – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 1 x OCuLink port, 1 x M.2 | USB & FireWire: USB 3.0 | USB & FireWire Ports Configuration (Active): 2 x USB 3.0 | USB & FireWire Ports Configuration (Headers): 2 x USB 2.0 | Graphics Controller Model: ASPEED AST2600 | Type: Graphics adapter | Output Type: None | Included Software: SuperDoctor 5 | Compatible Processors Comments: Maximum TDP 46 Watt | Form Factor (Motherboard): Mini ITX | Power Connectors: 8-pin ATX12V connector, DC-in power connector | Supported RAM (Registered or Buffered): Registered, Unbuffered | Supported RAM Integrity Check: ECC, Non-ECC | BIOS Features: ACPI 6.3 support, IPMI 2.0 support, Power failure recovery (AC loss resume), SMBIOS 3.3 support, UEFI BIOS | BIOS Type: AMI | Hardware Features: Chassis intrusion detection, Diagnostic LEDs, TPM IC Onboard, WatchDog Timer | Hardware Monitoring: CPU core voltage, Fan control, System voltage | Packaged Quantity: 1 | Product Type: Motherboard | Cables: 1 x OCuLink to 4 x SATA cable, 1 x OCuLink to U.2 cable, 1 x serial cable | Included Accessories: IO shield | Width: 6.8 inch | Depth: 6.8 inch | Compliant Standards: Plug and Play, RoHS | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Service & Support Details: Limited warranty – labor – 3 years, Limited warranty – parts – 1 year | Limited Warranty: 3 Year | Package Type: Retail
