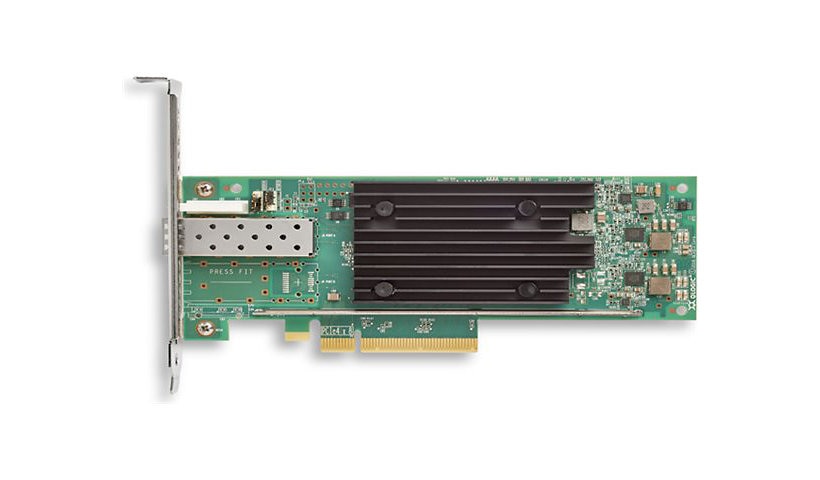

Marvell QLogic 2770 Series QLE2770 – host bus adapter – PCIe 4.0 x8 – 32Gb Fibre Channel Gen 6

Brand: Marvell | Product Line: Marvell QLogic 2770 Series | Model: QLE2770 | Manufacturer: QLOGIC | Connectivity Technology: Wired | Data Link Protocols: 32Gb Fibre Channel Gen 6 | Data Transfer Rate: 32 GBps | Features: D-Port Diagnostics, Extended Message-Signaled Interrupts (MSI-X), Fabric Device Management Interface (FDMI), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-based Boot LUN Discovery (F-BLD), FC Ping, Host-Bus-Adapter (HBA) diagnostics, N-Port ID Virtualization (NPIV) technology, QConvergeConsole (QCC), Unified Extensible Firmware Interface (UEFI) | Fibre Channel: FC-FS-4, FC-GS-8, FC-LS-4, FC-NVMe-2, FC-PI-5, FC-PI-6, FC-Tape, FCP-4 | Form Factor: Plug-In Card | Host Interface: PCI Express 4.0 x8 | Low Profile: Low profile | PCI Specification Revision: PCIe 4.0 | Product Type: Host bus adapter | Remote Management: CLI, SMI-S | Interface Provided: 1 x 32Gb Fibre Channel – SFP+ | Network & Adapter Ports: 32Gb Fibre Channel Gen 6 | Max Operating Temperature: 131 degree Fahrenheit | Min Operating Temperature: 32 degree Fahrenheit | Operating Humidity: 10 – 90% RH (non-condensing) | Capacity: Active exchanges per port: 2048, Concurrent port logins per port: 2048 | Packaged Quantity: 1 | Performance: Throughput (full duplex line rate per port): 6400 Mbps | Height: 2.7 inch | Depth: 6.6 inch | Color Category: Green, Silver | Compliant Standards: AS/NZS Class A, BSMI CNS 13438, CB, CSA C22.2, EN 55032, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, KC-RRA Class A, TUV EN60950-1, UKCA, UL 60950-1, VCCI Class A
