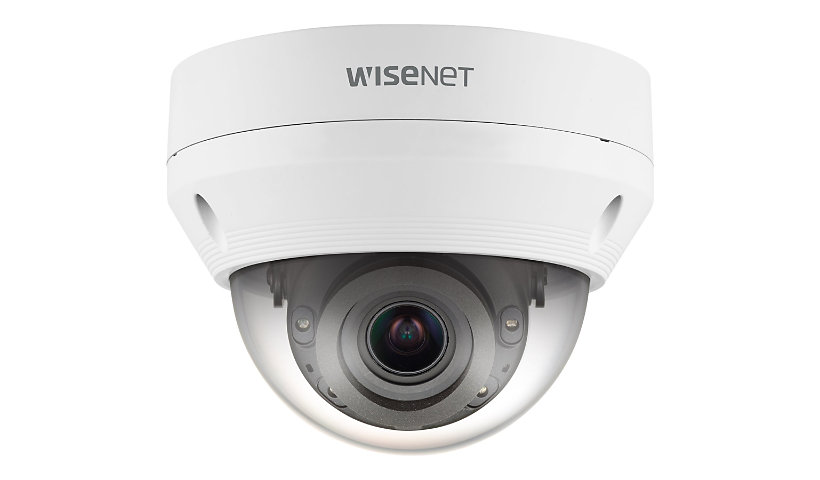

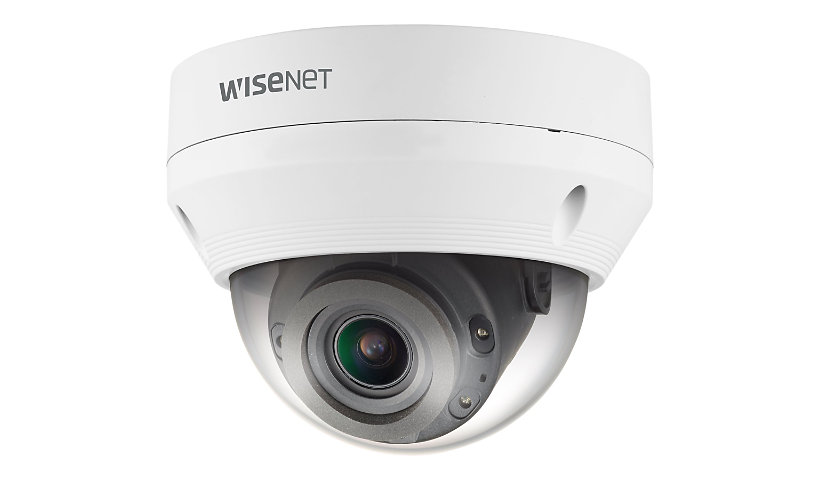

Hanwha Vision Wisenet Q QNV-8080R – network surveillance camera – dome

Brand: Hanwha Techwin | Product Line: Hanwha Vision WiseNet Q | Model: QNV-8080R | Manufacturer: Hanwha | Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card | Network Interface: Ethernet 10Base-T/100Base-TX | Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP | Connectivity Technology: Wired | Ports: Composite video, LAN/power – RJ-45 | Image Sensor Size: 1/2.8″ | Image Sensor Type: CMOS | Tilt: 0 to 67 | Touchscreen: No | Camera Mechanical Design: Fixed | Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2592 x 1944, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600 | Max Frame Rate: 30 frames per second | Max Video Resolution: 2592 x 1944 | Motion Detection: Yes | Panning Range (degree): 350 | Shutter Speed (Max): 1/12000 second (time unit) | Shutter Speed (Min): 1/5 second (time unit) | Video Signals: Composite video | Camera Type: Network surveillance camera | Night Vision: Yes | Low Voltage Power: PoE Class 3 | Power Consumption Operational: 8.9 watt | Angular Field of View (D, Max, Degree): 133.1 | Angular Field of View (D, Min, Degree): 38.8 | Angular Field of View (H, Max, Degree): 100.3 | Angular Field of View (H, Min, Degree): 31.2 | Angular Field of View (V, Max, Degree): 72.3 | Angular Field of View (V, Min, Degree): 23.5 | Focal Length Control: Motorized zoom | Form Factor: Dome | Infrared Distance: 66 ft | Infrared LEDs: Yes | Lens Aperture: F/1.6-2.9 | Max Focal Length: 10 millimetre | Max Operating Temperature: 131 degree Fahrenheit | Min Focal Length: 3.1 millimetre | Min Operating Temperature: -22 degree Fahrenheit | Minimum Illumination: 0 lux – B&W – infrared LEDs on, 0.15 lux – color – F2.0 | Operating Humidity: 0 – 90% | Operating System Required: Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1 | Optical Zoom: 3.1 | Sensor Pixels Effective (H): 2592 | Sensor Pixels Effective (V): 1944 | Sensor Size (metric): 9.1 mm (1/2.8″) | Total Pixels: 5,000,000 pixels | Video Formats: H.264, H.265, MJPEG, NTSC, PAL | Video Input: Color | Alarm Input Quantity: 1 | Alarm Output Quantity: 1 | Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Direction detection, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support | Packaged Quantity: 1 | Height: 4.2 inch | Weight: 24.69 ounce | Width: 5.4 inch | Depth: 5.4 inch | Color: White | Color Category: White | Compliant Standards: cULus, EAC, FCC, IEEE 802.1x, IEEE 802.3af, IK10, IP66
