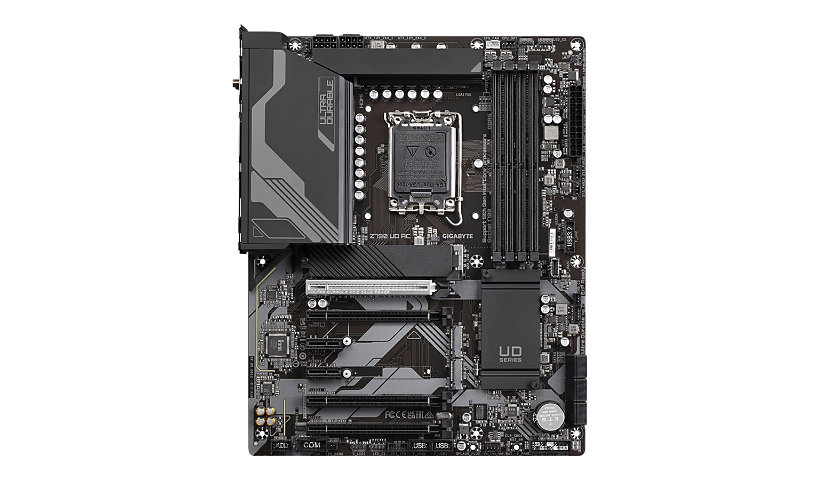

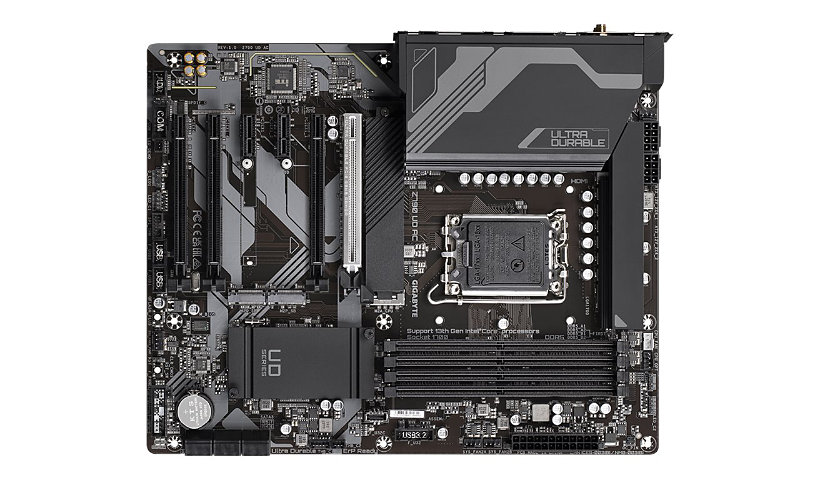

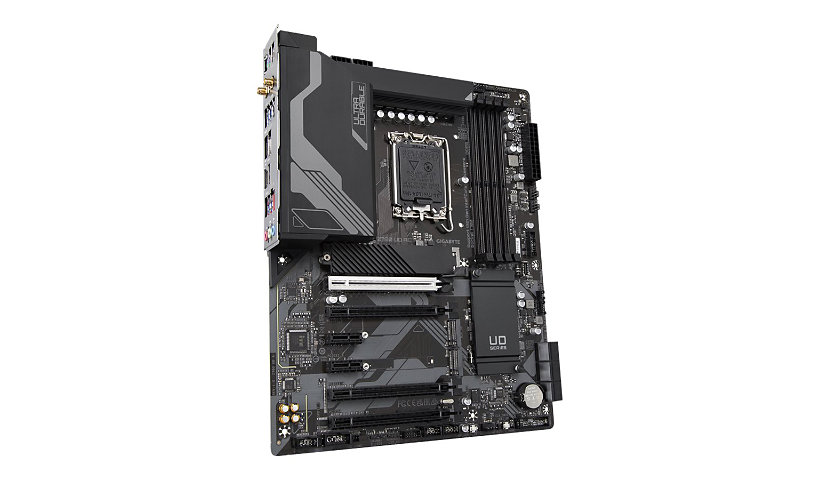

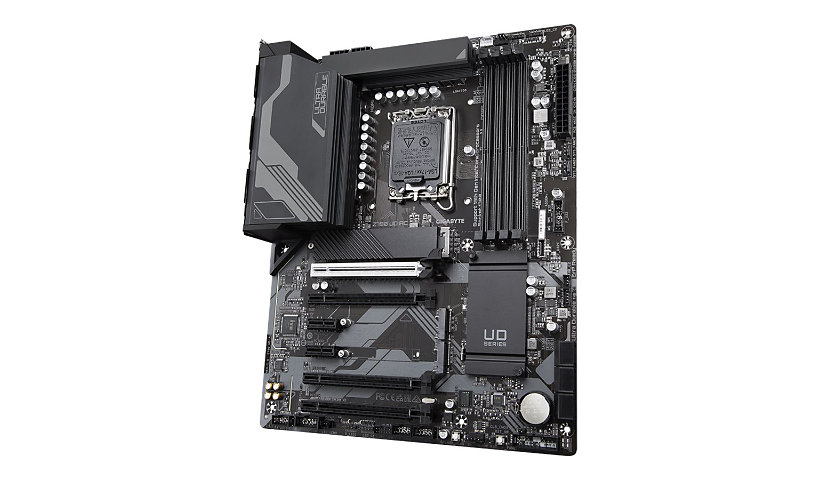

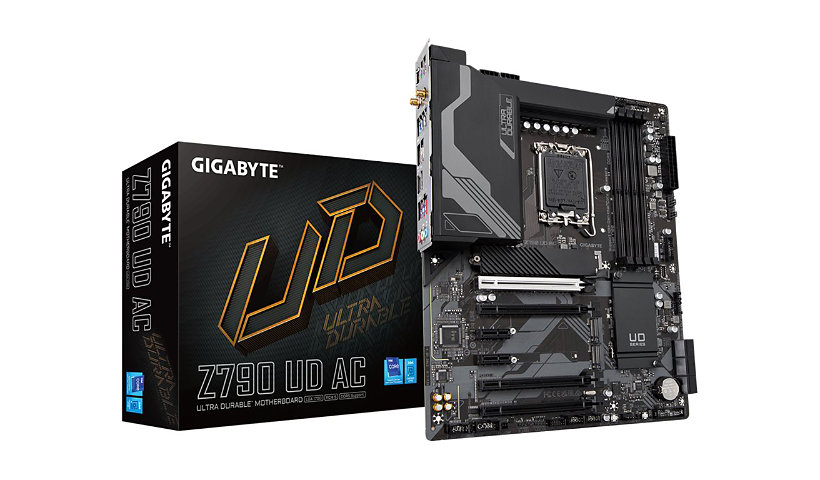

Gigabyte Z790 UD AC – 1.0 – motherboard – ATX – LGA1700 Socket – Z790

Brand: GIGABYTE | Product Line: Gigabyte | Model: Z790 UD AC | Manufacturer: Giga-Byte | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), Supported ECC modules operate in non-ECC mode | Max Memory Supported: 128 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4000 MHz, 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.) | Storage Interfaces: PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Controller Type: Realtek RTL8821CE | Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth 5.2, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n | Network: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.2 | Expansion Slots: 1 x CPU, 1 x M.2 socket (2280/22110 M.2 Key M slot), 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 5.0 x16, 2 x M.2 socket (2280 M.2 Key M slot), 4 x DIMM 288-pin | Interface Provided: 1 x audio line-in – mini-jack, 1 x audio line-out – mini-jack, 1 x DisplayPort, 1 x HDMI, 1 x LAN (2.5Gigabit Ethernet), 1 x microphone – mini-jack, 1 x PS/2 keyboard / mouse, 1 x USB 3.2 Gen 2, 1 x USB-C Gen2x2, 2 x antenna, 4 x USB 2.0, 4 x USB 3.2 Gen 1 | Internal Interfaces: 1 x audio – header, 1 x serial – header, 1 x SPDIF out – header, 1 x USB-C 3.2 Gen 1 – header, 2 x Thunderbolt – header, 2 x USB 3.2 Gen 1 – header, 4 x USB 2.0 – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 6 x SATA-600 (RAID), 3 x M.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB-C 3.2 Gen 2×2 | USB & FireWire Ports Configuration (Active): 1 x USB-C 3.2 Gen 2×2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio (8-channel) | Compliant Standards: High Definition Audio | Output Type: Sound card | Included Software: GIGABYTE Control Center, GIGABYTE Smart Backup, Norton Internet Security | Chipset Type: Intel Z790 | Compatible Processors Comments: Supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron | Form Factor (Motherboard): ATX | Power Connectors: 2 x 8-pin ATX12V connectors, 24-pin main power connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: ECC (operate in non-ECC mode), Non-ECC | BIOS Features: ACPI 5.0 support, DMI 2.7 support, PnP 1.0a support, SMBIOS 2.7 support, UEFI BIOS | BIOS Type: AMI | Hardware Features: 16+1+1 Phase Power Design, 6 Layer PCB, 60A Power Stage, DIY Friendly Design, Dr.MOS MOSFET, GIGABYTE Smart Fan 6, M.2 Thermal Guard, Pre-mounted I/O shield, Q-Flash, Q-Flash Plus, RGB FUSION 2.0, Ultra Durable, VRM heatsink design, Water Pump Header, Windows 11 compatible | Hardware Monitoring: Fan control, Fan fail warning, System voltage, Water cooling flow rate | Packaged Quantity: 1 | Product Type: Motherboard | Revision: 1.0 | Width: 12 inch | Depth: 9.6 inch | Compliant Standards: DisplayPort 1.2, HDCP 2.3 | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
