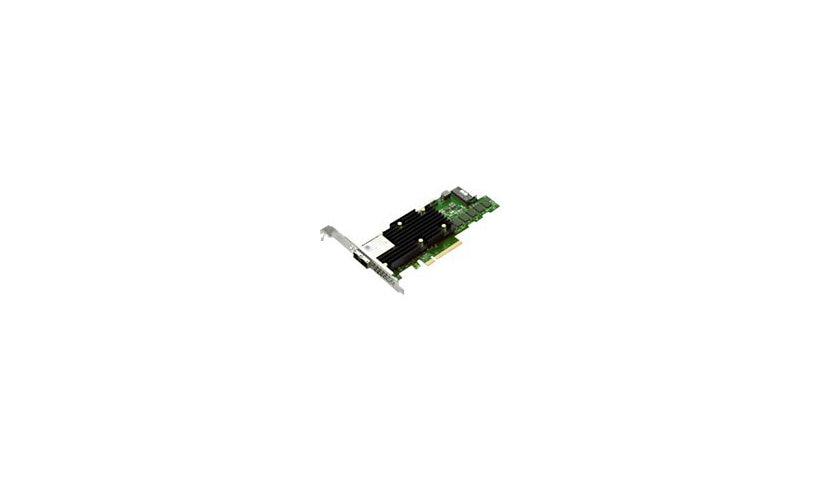

Broadcom MegaRAID 9580-8i8e – storage controller (RAID) – SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) – PCIe 4.0 x8

Brand: Broadcom | Product Line: Broadcom MegaRAID | Model: 9580-8i8e | Manufacturer: LSI Logic | Buffer Size: 8 GB | Channel Quantity: 16 | Controller Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) | RAID Levels: JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 | Interface Provided: 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) – Slim SAS (SFF-8654) (internal), 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) – 36 pin 4x Mini SAS HD (SFF-8644) (external) | Power Consumption Operational: 14.25 watt | Form Factor (Storage Controller): Plug-in card | Host Bus Interface: PCIe 4.0 x8 | Max Operating Temperature: 131 degree Fahrenheit | Min Operating Temperature: 32 degree Fahrenheit | MTBF: 3,000,000 Hours | Operating Humidity: 5 – 90% (non-condensing) | Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi) | Supported Devices: Disk array (RAID) | Features: Tri-Mode SerDes technology | Max Storage Devices: 240 | Packaged Quantity: 1 | Product Type: Storage controller (RAID) | Height: 2.7 inch | Depth: 6.6 inch | Color Category: Black, Green, Silver | Compliant Standards: AS/NZS CISPR 22, CNS 13438, EN 60950, EN55022, EN55024, FCC CFR47 Part 15 B, FCC Class B certified, ICES-003 Class B, IEC 60950, RoHS, UL 60950, VCCI V-3, WEEE | Service & Support Details: Limited warranty – 3 years, Technical support – 3 years | Limited Warranty: 3 Year
