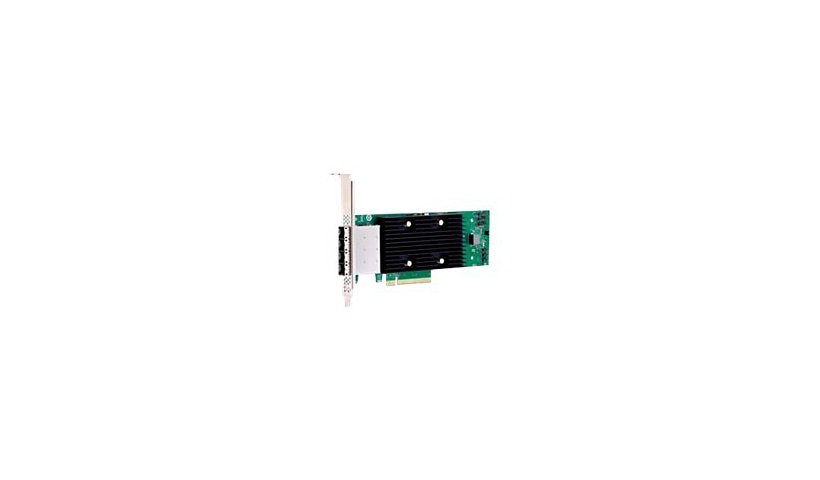

Broadcom HBA 9600-16e – storage controller – SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) – PCIe 4.0 x8

Brand: Broadcom | Product Line: Broadcom | Model: HBA 9600-16e | Manufacturer: LSI Logic | Channel Quantity: 16 | Controller Interface: SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) | Interface Provided: 4 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) – SFF-8644 (internal) | Power Consumption Operational: 15 watt | Power Device Type: None | Form Factor (Storage Controller): Plug-in card | Host Bus Interface: PCIe 4.0 x8 | Max Operating Temperature: 131 degree Fahrenheit | Min Operating Temperature: 32 degree Fahrenheit | MTBF: 5,000,000 Hours | Operating Humidity: 5 – 90% (non-condensing) | Operating System Required: CentOS, Citrix XenServer, Debian Linux, FreeBSD, Linux Fedora, Microsoft Windows, Oracle Enterprise Linux, Red Hat Linux, SuSe Linux, Ubuntu, VMware ESXi, VMware vSphere (ESXi) | Supported Devices: Solid State Drive | Packaged Quantity: 1 | Product Type: Storage controller | Included Accessories: Low-profile bracket | Height: 2.7 inch | Depth: 6.6 inch | Color Category: Black, Green | Compliant Standards: BSMI, CISPR 32, CISPR 32:2015 Class A, CMIM, CNS 13438, CNS 15663, EMC, EN 55032, EN 55032:2015+AC:2016 Class A, EN 55035, EN 55035:2017/A11:2020, EN55024, FCC Class B certified, ICES, KN32, KN35, RoHS, UL, VCCI-CISPR 32:2016, WEEE | Service & Support Details: Limited warranty – 3 years, Technical support – 3 years | Limited Warranty: 3 Year
