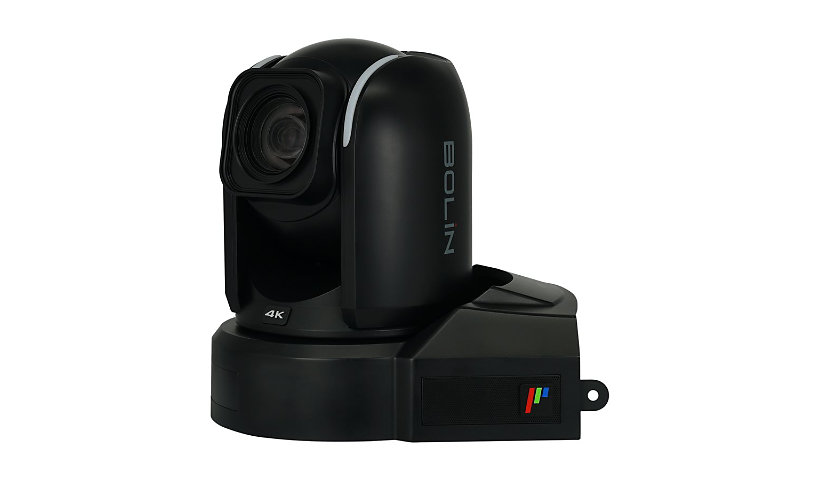

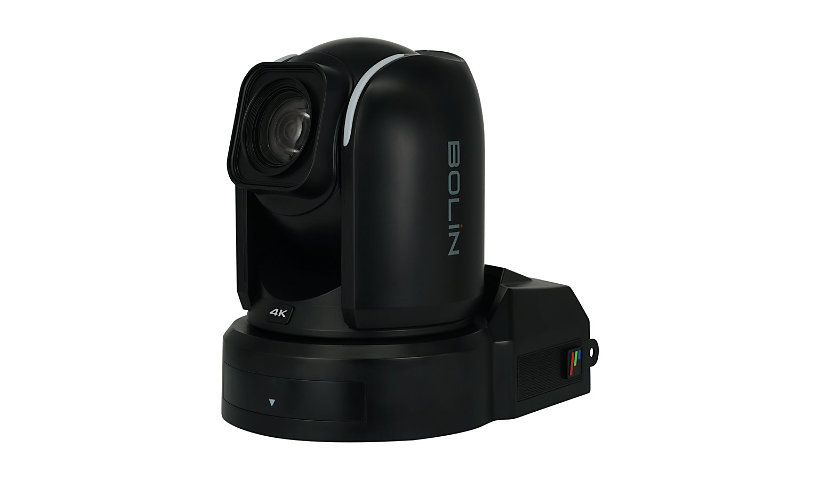

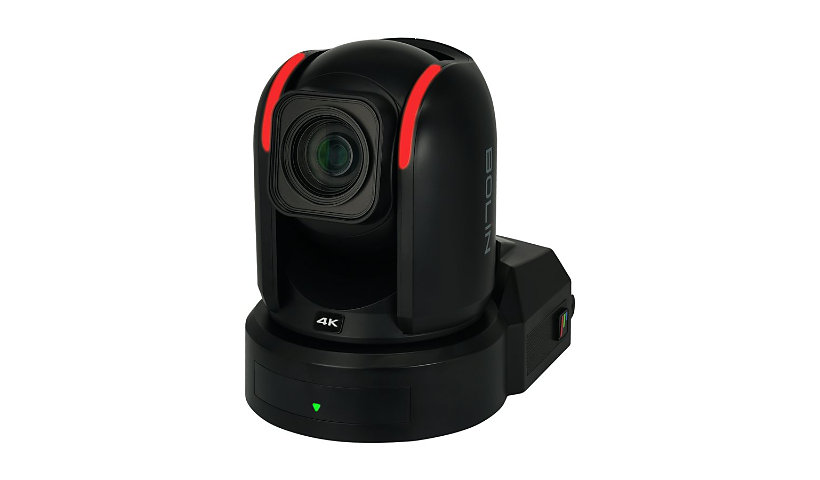

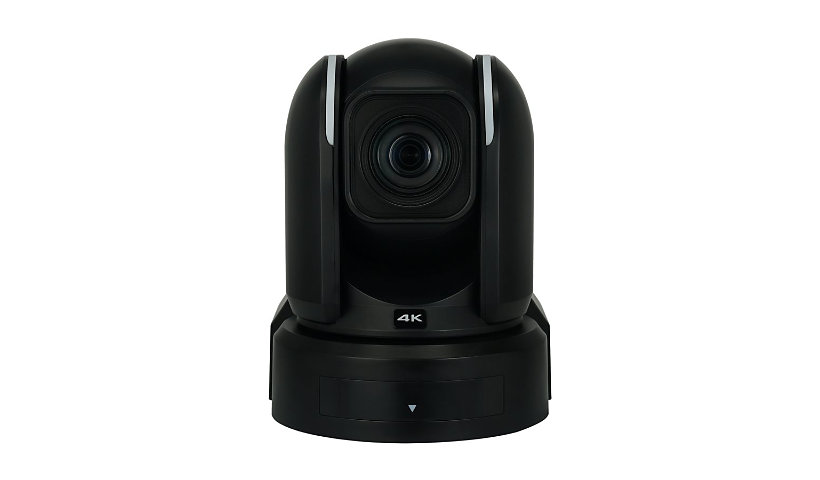

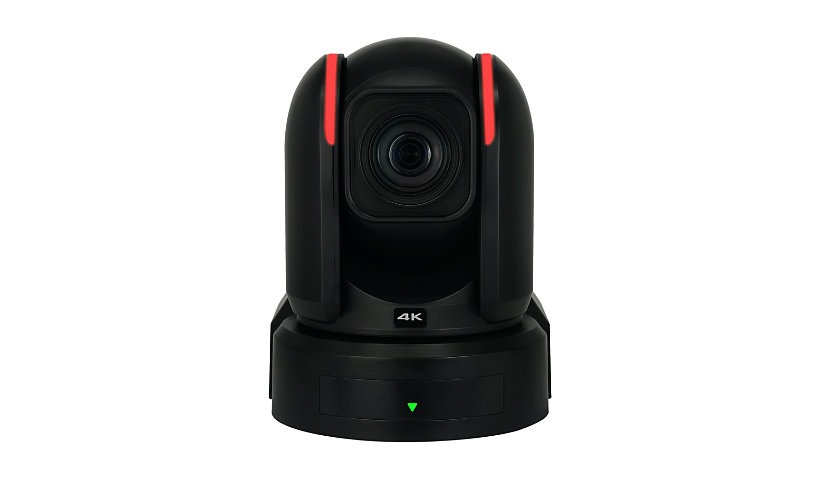

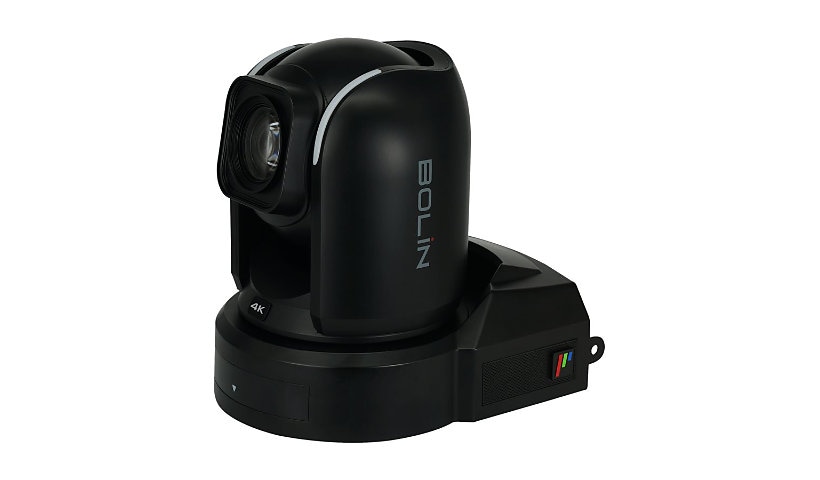

Bolin R9 Series R9-420F – network broadcast camera

Brand: Bolin | Product Line: Bolin R9 Series | Model: R9-420F | Manufacturer: Bolin | Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-TX | Protocols: ARP, DHCP, DNS, FTP, HTTP, ICMP, IGMP, NTP, QOS, RTMP, RTMPS, RTSP, SNMP, SRT, TCP/IP, UDP/IP, UPnP | Connectivity Technology: Wired | Ports: 2 x SDI, Audio line in – 3.5 mm jack, Genlock, HDMI, LAN/power – RJ-45, LEMO, Serial RS-422 – RJ-45, SFP | Image Sensor Size: 1/2.8″ | Tilt: -30 to +90 | Audio Formats: AAC-LC, G.711, G.722.1, G.726, MP2L2 | Audio Support: Yes | Audio Support Features: Two-way audio capability | Camera Mechanical Design: Pan / tilt / zoom | Digital Video Capture Resolution: 1280 x 720, 1920 x 1080, 3840 x 2160 | Digital Zoom: 16 | Max Frame Rate: 60 frames per second | Max Panning Speed (degree/sec): 100 | Max Tilting Speed (degree/sec): 50 | Max Video Resolution: 3840 x 2160 | Panning Range (degree): -170 to +170 | Shutter Speed (Max): 1/10000 second (time unit) | Shutter Speed (Min): 1/1 second (time unit) | Video Modes: 1080/25p, 1080/30p, 1080/50p, 1080/60i, 1080/60p, 2160/23.98p, 2160/24p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 2160/60p, 4K | Camera Mount Type: Ceiling mount, Tripod mount, Wall mount | Camera Type: Network broadcast camera | Night Vision: Yes | Low Voltage Power: DC 12 V / PoE ++ | Power Consumption Operational: 50 watt | Angular Field of View (H, Max, Degree): 78.59 | Angular Field of View (H, Min, Degree): 4.92 | Angular Field of View (V, Max, Degree): 48.39 | Angular Field of View (V, Min, Degree): 2.79 | Focus Modes: Automatic, Manual | Indoor/Outdoor: Indoor | Lens Aperture: F/2.0-3.8 | Max Focal Length: 63.58 millimetre | Max Operating Temperature: 122 degree Fahrenheit | Min Focal Length: 3.55 centimetre | Min Operating Temperature: 14 degree Fahrenheit | Minimum Illumination: 0.1 lux – B&W, 0.5 lux – color | Operating Humidity: 0 – 80% (non-condensing) | Optical Zoom: 20 | Sensor Size (metric): 9.1 mm (1/2.8″) | Total Pixels: 8,290,000 pixels | Video Formats: H.264, H.265, HEVC, MJPEG, MPEG-4, YUV | Video Input: Color | Features: >50 dB SNR, 120 dB dynamic range, Auto white balance, Backlight Compensation (BLC), Built-in handle, Color matrix, Defog, E-Flip, Electronic Image Stabilizer (EIS), Face Detection, Focus zone, IMX715 sensor, IR selector button, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Video format selector button, VISCA over IP, Wide Dynamic Range (WDR) | Packaged Quantity: 1 | Cables: RJ-45 to RS-232 extension cable | Included Accessories: 3 mounting screws, Power adapter, Remote control | Height: 9.8 inch | Weight: 8.38 lbs | Width: 7.9 inch | Depth: 10 inch | Color: Black | Color Category: Black | Compliant Standards: SMPTE 2081, SMPTE 2082-1, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 352, SMPTE 424M, SMPTE 425-A
