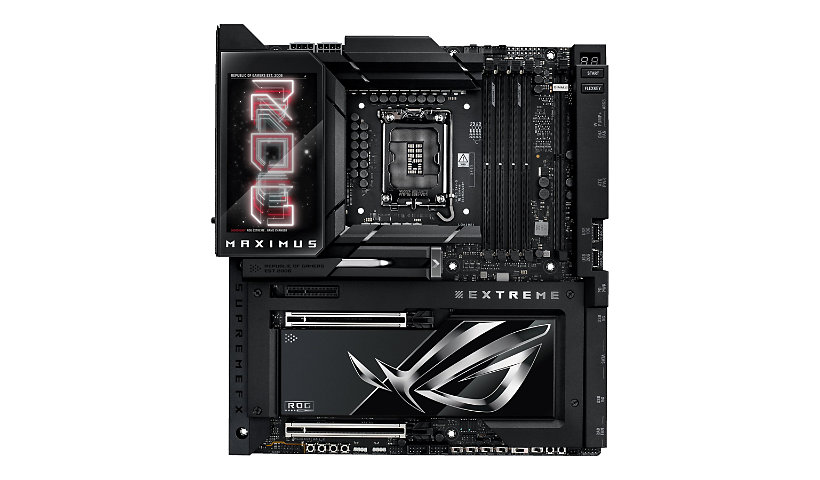

ASUS ROG MAXIMUS Z890 EXTREME – motherboard – ATX – LGA1851 Socket – Z890

Brand: ASUS | Product Line: ASUS | Model: ROG MAXIMUS Z890 EXTREME | Manufacturer: Asus Components | Processor Socket: LGA1851 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology | Max Memory Supported: 192 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4600 MHz (O.C.) | Storage Interfaces: PCIe 4.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 3 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA | Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n | Network: 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 | Expansion Slots: 1 x CPU, 1 x PCIe 4.0 x4, 2 x DIMM.2 socket (2242/2260/2280/22110 M.2 Key M slot), 2 x PCIe 5.0 x16, 4 x DIMM 288-pin, 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) | Interface Provided: 1 x audio line-out – mini-jack, 1 x HDMI, 1 x LAN (10Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 1 x microphone – mini-jack, 1 x SPDIF out, 1 x USB-C 3.2 Gen-2 x 2, 2 x antenna, 2 x Thunderbolt 5, 2 x USB-C 3.2 Gen 2, 5 x USB 3.2 Gen 2 | Internal Interfaces: 1 x audio – header, 1 x Thunderbolt 5 – header, 1 x USB-C 3.2 Gen 2 – header, 1 x USB-C 3.2 Gen 2×2 – header, 4 x USB 2.0 – header, 4 x USB 3.2 Gen 1 – header | Storage: DIMM.2, M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 4 x SATA-600 (RAID), 4 x M.2, 1 x DIMM.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4 | USB & FireWire Ports Configuration (Active): 2 x Thunderbolt 5 + 1 x USB-C 3.2 Gen 2×2 + 2 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 | USB & FireWire Ports Configuration (Headers): 1 x USB-C 3.2 Gen 2×2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio (8-channel) | Compliant Standards: Dolby Atmos, High Definition Audio | Output Type: Sound card | Included Software: Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year license), Armoury Crate, ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG CPU-Z, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial) | Chipset Type: Intel Z890 | Compatible Processors Comments: Supports Intel Core Ultra processors (Series 2) | Form Factor (Motherboard): ATX | Power Connectors: 2 x 8-pin ATX12V connectors, 24-pin main power connector, 8-pin PCI Express power connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: Non-ECC | Audio Codec: SupremeFX ALC4082 / ESS ES9219 | BIOS Features: ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, UEFI BIOS | BIOS Type: AMI | Hardware Features: 10K Black Metallic Capacitors, 24+1+2+2 Phase Power Design, 4 BCLK buttons, 5″ LCD full-color display, AI Cooling II, AI Networking II, AI Overclocking, ASUS Aura Sync, ASUS Enhanced Memory Profile (AEMP) III, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack button, Chipset heatsink, Clear CMOS Button, CPU Socket lever protector, CrashFree BIOS 3, CUDIMM support, DIY Friendly Design, Dual BIOS, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, LANGuard, LN2 Switch, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, Metal backplate, MicroFine Alloy Chokes, Pre-mounted I/O shield, ProbeIt, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, ReTry button, ROG M.2 PowerBoost, RSVD switch, Safe boot button, Slow Mode switch, Start button, VRM heatsink design | Packaged Quantity: 1 | Product Type: Motherboard | Sleep/Wake Up: Wake on LAN (WOL), Wake on PME | Cables: 4 x SATA Express cable | Included Accessories: 2 x M.2 Q-Slide, 2 x thermal pads for M.2 SSD, 6 x M.2 backplate rubber package, ARGB RGB extension cable, ASUS Wi-Fi Q-antenna, DDR5 fan holder, M.2 Q-Latch, Q-Connector, ROG bottle opener, ROG Q-DIMM.2 with heatsink, ROG screwdriver, ROG stickers, ROG thank you card, ROG VIP card, USB drive | Width: 12 inch | Depth: 9.6 inch | Compliant Standards: DisplayPort 2.1
