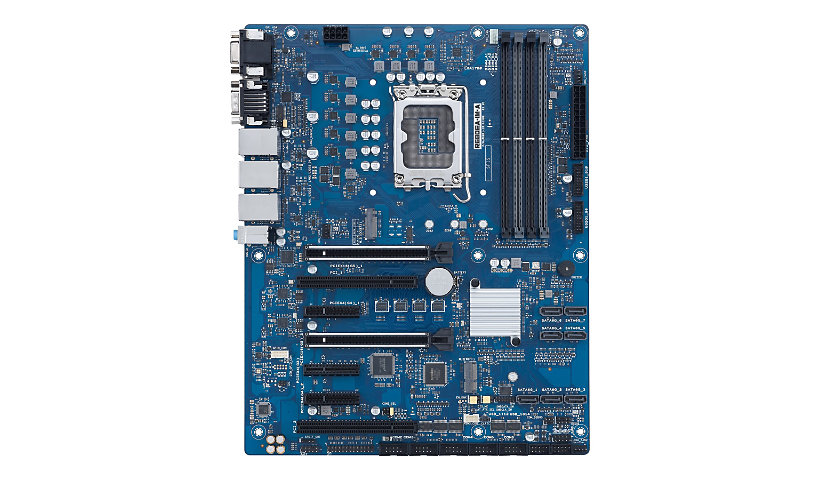

ASUS R680EA-IM-A – motherboard – ATX – LGA1700 Socket – R680E

Brand: ASUS | Product Line: ASUS | Model: R680EA-IM-A | Manufacturer: Asus Components | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture | Max Memory Supported: 128 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 3600 MHz, 4000 MHz, 4400 MHz | Storage Interfaces: SATA-600 -connectors: 7 x 7pin SATA – RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Controller Type: Intel I226-V / I226LM / I210AT | Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 2.5 Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x M.2 socket (Key E), 1 x PCIe 3.0 x4, 2 x PCIe 4.0 x4, 2 x PCIe 5.0 x16, 4 x DIMM 288-pin | Interface Provided: 1 x audio line-in – mini-jack, 1 x audio line-out – mini-jack, 1 x HDMI, 1 x microphone – mini-jack, 1 x serial, 1 x USB-C 3.2 Gen 2, 1 x VGA, 2 x DisplayPort, 3 x LAN (2.5Gigabit Ethernet), 5 x USB 3.2 Gen 2 | Internal Interfaces: 1 x audio – header, 1 x GPIO – header, 1 x SPDIF – header, 1 x speaker – header, 4 x USB 2.0 – header, 4 x USB 3.2 Gen 1 – header, 5 x serial – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 7 x SATA-600 (RAID), 1 x M.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 | USB & FireWire Ports Configuration (Active): 1 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 | USB & FireWire Ports Configuration (Headers): 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Compliant Standards: High Definition Audio | Output Type: Sound card | Chipset Type: Intel R680E | Compatible Processors Comments: Supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron | Form Factor (Motherboard): ATX | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: ECC | Audio Codec: Realtek ALC897 | Hardware Features: WatchDog Timer | Packaged Quantity: 1 | Product Type: Motherboard | Width: 12 inch | Depth: 9.6 inch | Compliant Standards: BSMI, CE/LVD, FCC, RCM, VCCI | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
