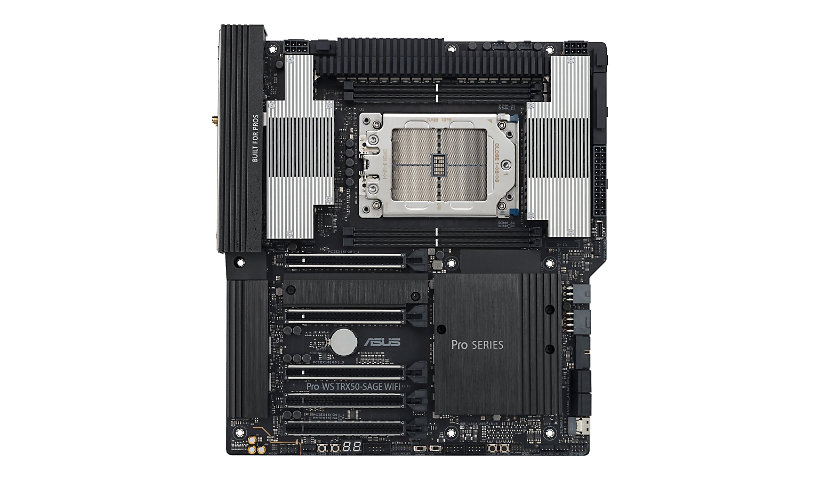

ASUS PRO WS TRX50-SAGE WIFI – motherboard – SSI CEB – Socket sTR5 – AMD TRX50

Brand: ASUS | Product Line: ASUS | Model: PRO WS TRX50-SAGE WIFI | Manufacturer: Asus Components | Processor Socket: Socket sTR5 | Processors Installed: 0 | Total Processor Supported: 1 | Features: AMD EXPO technology, Four DDR channels, Registered | Max Memory Supported: 1 TB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Storage Interfaces: PCIe 4.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x SlimSAS, PCIe 5.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Controller Type: Marvell AQtion / Intel I226-LM | Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n | Network: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 | Expansion Slots: 1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 5.0 x16 (x8 mode), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x PCIe 5.0 x16, 4 x DIMM 288-pin | Interface Provided: 1 x audio line-out – mini-jack, 1 x LAN (10Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 1 x microphone – mini-jack, 1 x SPDIF out, 1 x USB-C 3.2 Gen-2 x 2, 2 x antenna, 2 x USB 2.0, 6 x USB 3.2 Gen 2 | Internal Interfaces: 1 x audio – header, 1 x serial – header, 1 x SPI – header, 1 x Thunderbolt 4 – header, 1 x USB-C 3.2 Gen 2×2 – header, 2 x USB 3.2 Gen 1 – header, 4 x USB 2.0 – header | Storage: M.2 socket, Serial ATA-600 (RAID), SlimSAS slot | Storage Ports: 4 x SATA-600 (RAID), 3 x M.2, 1 x SlimSAS | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2×2 | USB & FireWire Ports Configuration (Active): 1 x USB-C 3.2 Gen 2×2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 1 x USB-C 3.2 Gen 2×2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Compliant Standards: High Definition Audio | Output Type: Sound card | Included Software: Adobe Creative Cloud (free trial), Armoury Crate, ASUS Control Center Express, ASUS CPU-Z, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial) | Chipset Type: AMD TRX50 | Compatible Processors Comments: Supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series | Form Factor (Motherboard): SSI CEB | Power Connectors: 2 x 24-pin main power connectors, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express to CPU power connector | Supported RAM (Registered or Buffered): Registered | Supported RAM Integrity Check: ECC | Audio Codec: Realtek ALC1220P | BIOS Features: UEFI BIOS | BIOS Type: AMI | Hardware Features: 18×2+3+4+4 Phase Power Design, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, CrashFree BIOS 3, FlexKey button, M.2 heatsink, M.2 Q-Latch, Overcurrent protection, Pre-mounted I/O shield, Preboot eXecution Environment (PXE), Q-Code, Q-DIMM, Q-LED, Q-Slot, ReTry button, Safe boot button, Slow Mode switch, Start button, VRM heatsink with fan | Packaged Quantity: 1 | Product Type: Motherboard | RAID Features: AMD RAID Xpert2 Technology | Sleep/Wake Up: Wake on LAN (WOL), Wake on PME | Cables: 2 x Serial ATA cable | Included Accessories: 2 x M.2 rubber package, ACC Express Activation Key Card, ASUS 2×2 Dual Band Wi-Fi moving antennas, CPU 8-pin to PCIe 8-pin adapter cable, M.2 Q-Latch, Q-Connector, Thermistor cable | Width: 12 inch | Depth: 11 inch | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
