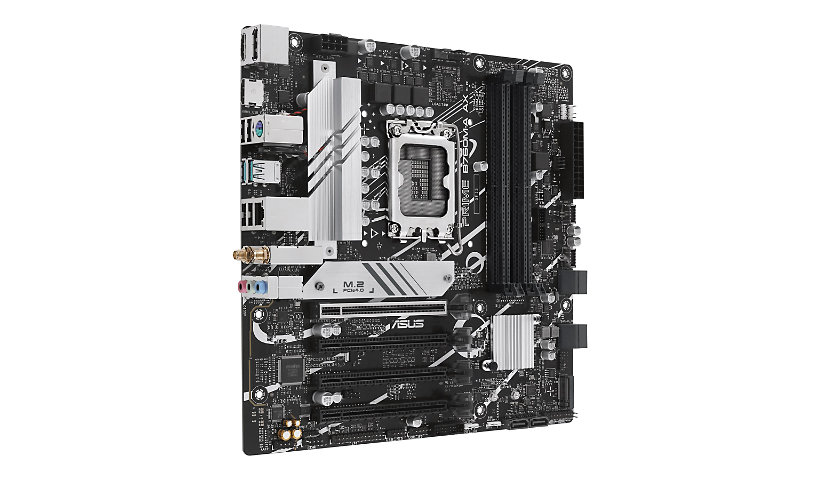

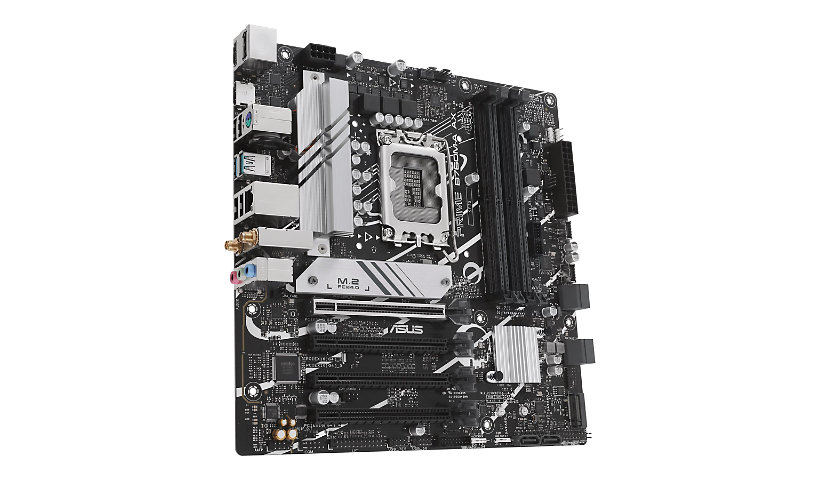

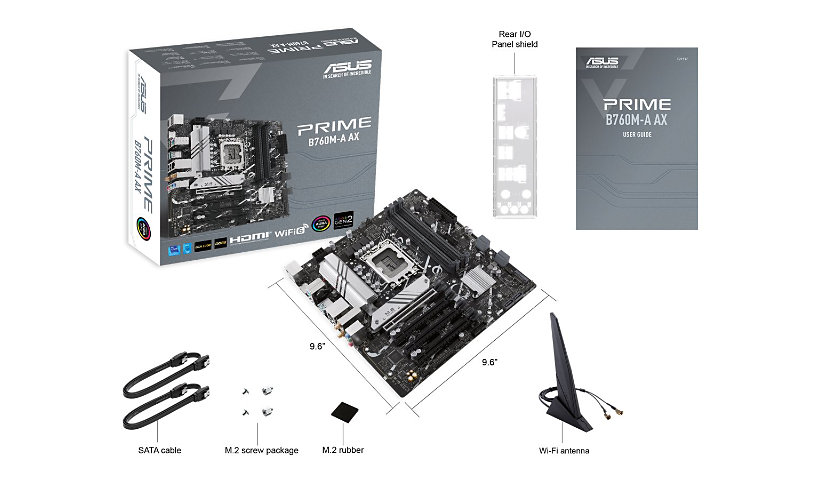

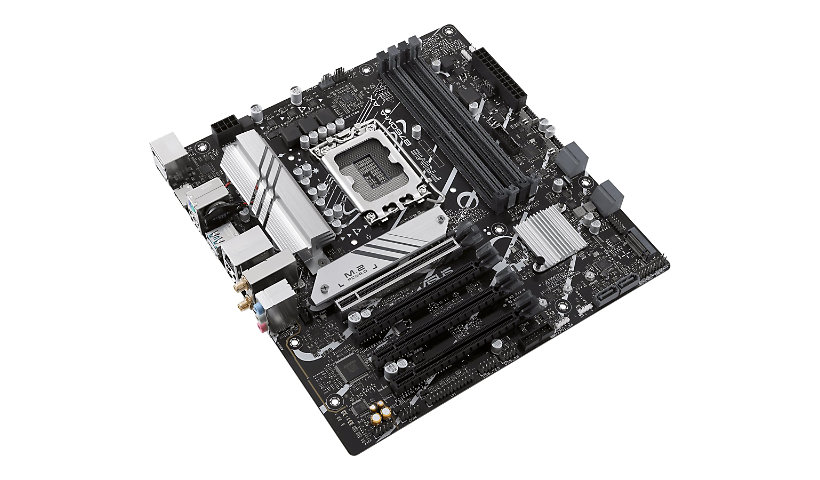

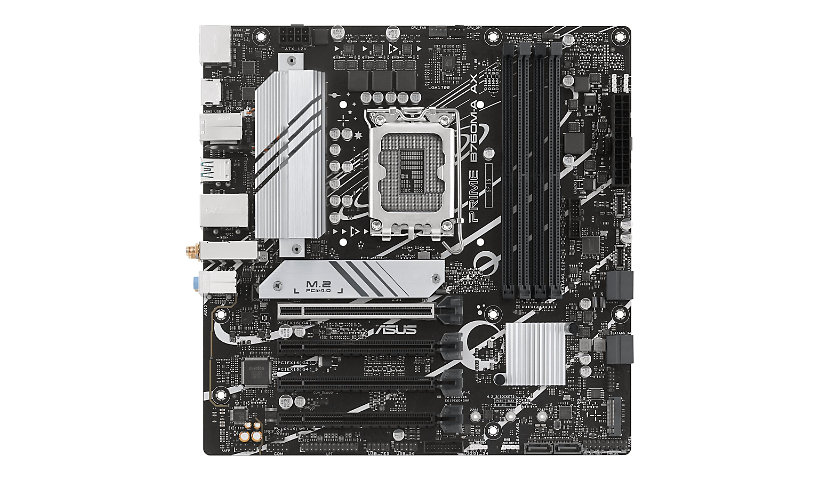

ASUS PRIME B760M-A AX – motherboard – micro ATX – LGA1700 Socket – B760

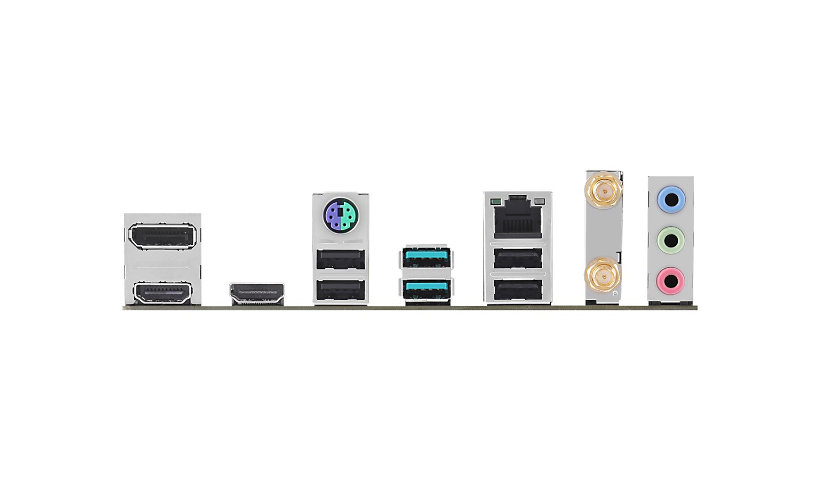

Brand: ASUS | Product Line: ASUS | Model: PRIME B760M-A AX | Manufacturer: Asus Components | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) | Max Memory Supported: 128 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR5 SDRAM | Supported Memory Speed: 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.) | Storage Interfaces: PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 | Data Link Protocols: 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n | Network: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 | Expansion Slots: 1 x CPU, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x PCIe 4.0 x16 (x1 mode), 4 x DIMM 288-pin | Interface Provided: 1 x audio line-in – mini-jack, 1 x DisplayPort, 1 x headphones output – mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x microphone – mini-jack, 1 x PS/2 keyboard / mouse, 2 x antenna, 2 x HDMI, 2 x USB 3.2 Gen 2, 4 x USB 2.0 | Internal Interfaces: 1 x audio – header, 1 x serial – header, 1 x SPDIF out – header, 1 x SPI – header, 2 x USB-C 3.2 Gen 1 – header, 4 x USB 2.0 – header, 4 x USB 3.2 Gen 1 – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 6 x SATA-600 (RAID), 2 x M.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 | USB & FireWire Ports Configuration (Active): 2 x USB 3.2 Gen 2 + 4 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 2 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio (8-channel) | Compliant Standards: High Definition Audio | Output Type: Sound card | Included Software: Armoury Crate, ASUS AI Suite III, ASUS AURA Creator, ASUS CPU-Z, ASUS Fan Xpert 2+, MyAsus, Norton 360 Deluxe (60 days trial), PC Cleaner, WinRAR | Chipset Type: Intel B760 | Compatible Processors Comments: Supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron | Form Factor (Motherboard): Micro ATX | Power Connectors: 24-pin main power connector, 8-pin ATX12V connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: Non-ECC | BIOS Features: ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, UEFI BIOS | BIOS Type: AMI | Hardware Features: 6 Layer PCB, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS OptiMem II, ASUS ProCool, ASUS Q-Design, ASUS Stainless Steel Back I/O, Audio jack detect technology, CrashFree BIOS 3, DIY Friendly Design, Jack retasking, LANGuard, M.2 heatsink, Overvoltage protection, Preboot eXecution Environment (PXE), Q-DIMM, Q-LED, Q-Slot, Water Pump Header | Packaged Quantity: 1 | Product Type: Motherboard | Sleep/Wake Up: Wake on LAN (WOL), Wake on PME | Cables: 2 x Serial ATA cable | Included Accessories: 1 x M.2 rubber package, ASUS Wi-Fi moving antenna, IO shield, M.2 screw package | Width: 9.6 inch | Depth: 9.6 inch | Compliant Standards: EU REACH, EU RoHS, FCC Part 15 Class B, JATE, VCCI Class B ITE | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
