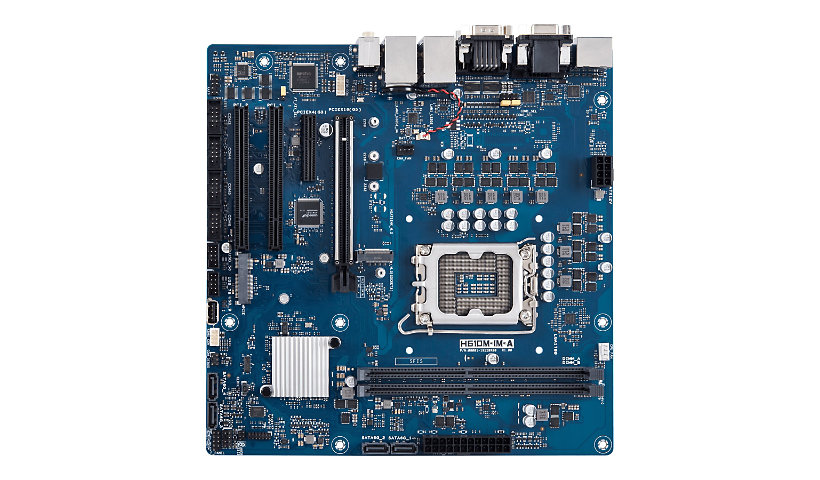

ASUS H610M-IM-A – motherboard – micro ATX – LGA1700 Socket – H610

Brand: ASUS | Product Line: ASUS | Model: H610M-IM-A | Manufacturer: Asus Components | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture | Max Memory Supported: 64 GB | Memory Slots: 2 DIMM slots | Mainboard Supported RAM: DDR4 SDRAM | Supported Memory Speed: 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz | Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA, SATA-600 / PCIe -connectors: 1 x M.2 | Controller Type: Intel I219V / Realtek RTL8111H | Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet | Network: Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x Mini PCIe, 1 x PCIe 3.0 x4 (x1 mode), 1 x PCIe 5.0 x16, 2 x DIMM 288-pin, 2 x PCI | Interface Provided: 1 x audio line-in – mini-jack, 1 x DisplayPort, 1 x microphone – mini-jack, 1 x VGA, 2 x HDMI, 2 x LAN (Gigabit Ethernet), 2 x RS-232/422/485, 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 | Internal Interfaces: 1 x audio – header, 1 x GPIO 8-bit – header, 1 x PS/2 – header, 1 x speaker – header, 1 x SPI – header, 1 x USB 2.0 – Type A, 4 x RS-232 – header, 4 x USB 2.0 – header | Storage: M.2 socket, Serial ATA-600 | Storage Ports: 4 x SATA-600, 1 x M.2 | USB & FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2 | USB & FireWire Ports Configuration (Active): 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 5 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Compliant Standards: High Definition Audio | Output Type: Sound card | Chipset Type: Intel H610 | Compatible Processors Comments: Supports 12th/13th and 14th Generation Intel Core / Pentium / Celeron | Form Factor (Motherboard): Micro ATX | Power Connectors: 24-pin main power connector, 8-pin ATX12V connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: Non-ECC | Audio Codec: Realtek ALC897 | Hardware Features: WatchDog Timer | Packaged Quantity: 1 | Product Type: Motherboard | Cables: 1 x Serial ATA cable | Included Accessories: 2 x M.2 screws, IO shield | Width: 9.6 inch | Depth: 9.6 inch | Compliant Standards: FCC | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
