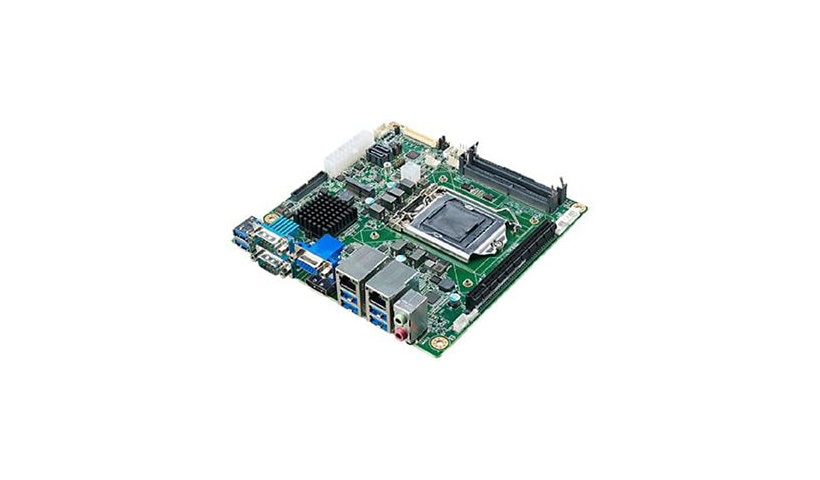

Advantech PPC-MB-610 – motherboard – mini ITX – LGA1151 Socket – Q370

Brand: Advantech | Product Line: Advantech | Model: PPC-MB-610 | Manufacturer: IMC Networks | Compatible Processors: Celeron, Core i3, Core i5, Core i7, Pentium Gold | Processor Socket: LGA1151 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Max Memory Supported: 32 GB | Memory Slots: 2 SO-DIMM slots | Mainboard Supported RAM: DDR4 SDRAM | Supported Memory Speed: 2666 MHz | Storage Interfaces: SATA-600 -connectors: 2 x 7pin Serial ATA – 2 devices | Controller Type: Intel I219LM / I226LM | Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 2.5 Gigabit Ethernet, Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x M.2 socket (Key E), 1 x M.2 socket (Key M), 1 x Mini PCIe / mSATA, 1 x PCIe x16, 2 x SO-DIMM 260-pin | Interface Provided: 1 x audio line-out, 1 x DisplayPort, 1 x LAN (2.5Gigabit Ethernet), 1 x LAN (Gigabit Ethernet), 1 x microphone, 1 x serial, 1 x VGA, 6 x USB 3.1 | Internal Interfaces: 1 x GPIO, 1 x LVDS, 1 x speaker, 2 x USB 2.0, 3 x RS-232 | Storage: Serial ATA-600 | Storage Ports: 2 x SATA-600 | USB & FireWire: USB 3.1 | USB & FireWire Ports Configuration (Active): 6 x USB 3.1 | USB & FireWire Ports Configuration (Headers): 2 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Output Type: Sound card | Chipset Type: Intel Q370 | Compatible Processors Comments: Supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron | Form Factor (Motherboard): Mini ITX | Supported RAM Integrity Check: Non-ECC | Hardware Features: WatchDog Timer | Packaged Quantity: 1 | Product Type: Motherboard | Width: 6.7 inch | Depth: 6.7 inch | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Compatibility Specs: Epson ELPAF47
