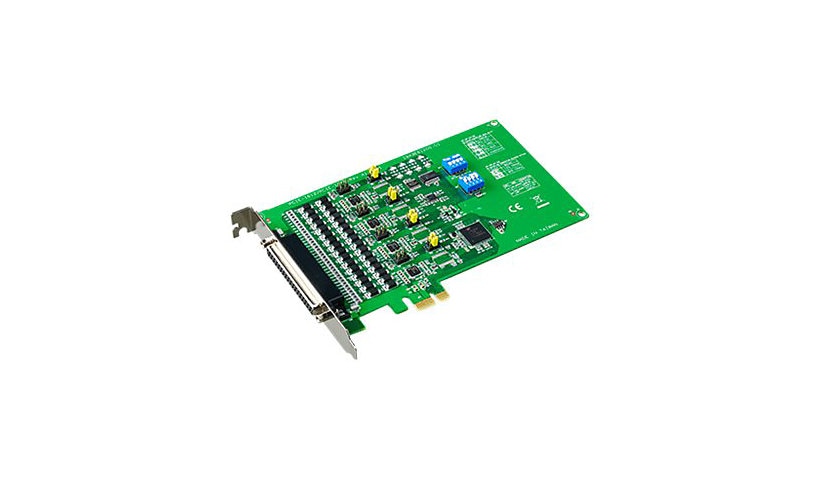

Advantech PCIE-1612 – serial adapter – PCIe 2.0 – RS-232/422/485 x 4

Brand: Advantech | Product Line: Advantech | Model: PCIE-1612 | Manufacturer: IMC Networks | Processor Number: XR17V354 | Connectivity Technology: Wired | Data Link Protocols: RS-232, RS-422, RS-485 | Data Transfer Rate: 921.6 Kbps | Features: 15 KV Electrostatic Discharge Protection, 256-byte FIFO, Surge protection | Form Factor: Plug-In Card | Host Interface: PCI Express 2.0 x1 | Product Type: Serial adapter | Interface Provided: 1 x RS-232/422/485 – 37 pin D-Sub (DB-37), 4 x RS-232/422/485 – 9 pin D-Sub (DB-9) (on cable) | Port Quantity: 4 | Network & Adapter Ports: RS-232/422/485 | Software Type: ICOM Tools | Max Operating Temperature: 140 degree Fahrenheit | Min Operating Temperature: 14 degree Fahrenheit | Operating Humidity: 5 – 95% (non-condensing) | Packaged Quantity: 1 | Cables: 1 x serial cable (external) – 1 ft | Height: 4.4 inch | Depth: 6.6 inch | Color Category: Green | Compliant Standards: FCC Class A certified, RoHS | Service & Support Details: Limited warranty – 5 years | Limited Warranty: 5 Year
