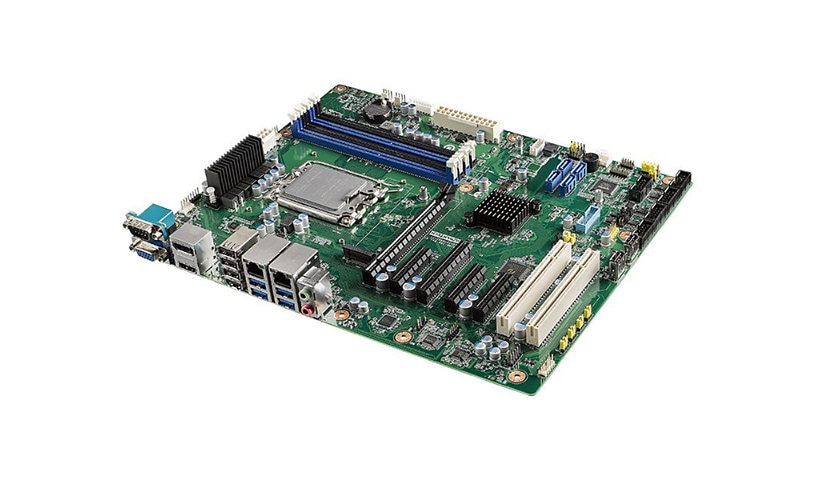

Advantech AIMB-788 – motherboard – ATX – LGA1700 Socket – Q670E

Brand: Advantech | Product Line: Advantech | Model: AIMB-788 | Manufacturer: IMC Networks | Compatible Processors: Core i3, Core i5, Core i7, Core i9 | Processor Socket: LGA1700 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture | Max Memory Supported: 128 GB | Memory Slots: 4 DIMM slots | Mainboard Supported RAM: DDR4 SDRAM | Supported Memory Speed: 3200 MHz | Storage Interfaces: PCIe 4.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA | Controller Type: Intel I219-LM / I210-AT | Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 2 x Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x8, 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x4 (2280 M.2 Key M slot), 1 x PCIe 4.0 x8, 1 x PCIe 5.0 x16, 4 x DIMM 288-pin | Interface Provided: 1 x audio line-out, 1 x HDMI, 1 x microphone, 1 x serial, 1 x VGA, 2 x LAN (Gigabit Ethernet), 4 x USB 2.0, 4 x USB 3.2 Gen 1 | Internal Interfaces: 1 x GPIO – header, 1 x SPI – header, 1 x USB – Type A, 2 x USB 2.0 – header, 2 x USB 3.2 Gen 1 – header, 5 x serial – header | Storage: M.2 socket, Serial ATA-600 (RAID) | Storage Ports: 4 x SATA-600, 1 x M.2 | USB & FireWire: USB 3.2 Gen 1 | USB & FireWire Ports Configuration (Active): 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 | USB & FireWire Ports Configuration (Headers): 2 x USB 3.2 Gen 1 + 2 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Output Type: Sound card | Chipset Type: Intel Q670E | Compatible Processors Comments: Supports 12th/13th and 14th Generation Intel Core / Pentium / Celeron | Form Factor (Motherboard): ATX | Power Connectors: 24-pin main power connector, 8-pin ATX12V connector | Supported RAM (Registered or Buffered): Unbuffered | Supported RAM Integrity Check: Non-ECC | Audio Codec: Realtek ALC888S | BIOS Type: AMI | Hardware Features: WatchDog Timer | Packaged Quantity: 1 | Product Type: Motherboard | Cables: 2 x Serial ATA cable | Included Accessories: I/O back cover | Width: 12 inch | Depth: 9.6 inch | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No | Compatibility Specs: P/N: 1700002204, 1700028292-01, 1701092300, 1970005349T000
