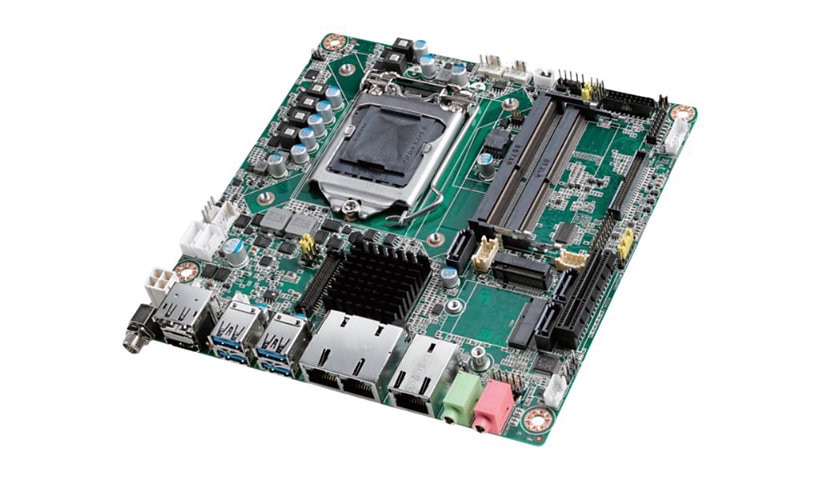

Advantech AIMB-286 – motherboard – mini ITX – LGA1151 Socket – H310

Brand: Advantech | Product Line: Advantech | Model: AIMB-286 | Manufacturer: IMC Networks | Compatible Processors: Celeron, Core i3, Core i5, Core i7, Pentium | Processor Socket: LGA1151 Socket | Processors Installed: 0 | Total Processor Supported: 1 | Features: Dual channel memory architecture | Max Memory Supported: 64 GB | Memory Slots: 2 SO-DIMM slots | Mainboard Supported RAM: DDR4 SDRAM | Supported Memory Speed: 2666 MHz | Storage Interfaces: SATA-600 -connectors: 3 x 7pin SATA – 3 devices | Controller Type: Realtek RTL8111H | Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet | Network: 3 x Gigabit Ethernet | Expansion Slots: 1 x CPU, 1 x M.2 socket (Key B), 1 x M.2 socket (Key E), 1 x PCIe 3.0 x4, 2 x SO-DIMM 260-pin | Interface Provided: 1 x audio line-out – mini-jack, 1 x DisplayPort, 1 x HDMI, 1 x microphone – mini-jack, 3 x LAN (Gigabit Ethernet), 4 x USB 3.0 | Storage: Serial ATA-600 | Storage Ports: 3 x SATA-600 | USB & FireWire: USB 3.0 | USB & FireWire Ports Configuration (Active): 4 x USB 3.0 | USB & FireWire Ports Configuration (Headers): 4 x USB 2.0 | Type: Graphics adapter (CPU required) | Audio Output: High Definition Audio | Compliant Standards: High Definition Audio | Output Type: Sound card | Chipset Type: Intel H310 | Form Factor (Motherboard): Mini ITX | Supported RAM Integrity Check: Non-ECC | Audio Codec: Realtek ALC888S | BIOS Type: AMI | Hardware Features: Trusted Platform Module (TPM), WatchDog Timer | Packaged Quantity: 1 | Product Type: Motherboard | Cables: 1 x Serial ATA cable, 1 x Serial ATA power cable | Width: 6.7 inch | Depth: 6.7 inch | Compliant Standards: FCC, RoHS | ENERGY STAR Certified: No | EPEAT Compliant: No | TCO Certified: No
